Galvanize steel coil-Galvanized Steel-SHANDONG DEHUILIN NEW MATERIALS CO., LTD.

Main Features of Galvanized Steel

Anticorrosive: 13 years in heavy industrial areas, 50 years in the ocean, 104 years in the suburbs and 30 years in cities.
Cheap: The cost of hot-dip galvanizing is lower than that of other coatings.
Reliable: The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more
durable.
Strong toughness: The galvanized steel sheet layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
Comprehensive protection: Every part of the plated piece can be galvanized, and is fully protected even in depressions,sharp corners,and hidden places.
Save time and energy: Galvanizing process is faster than other coating methods.

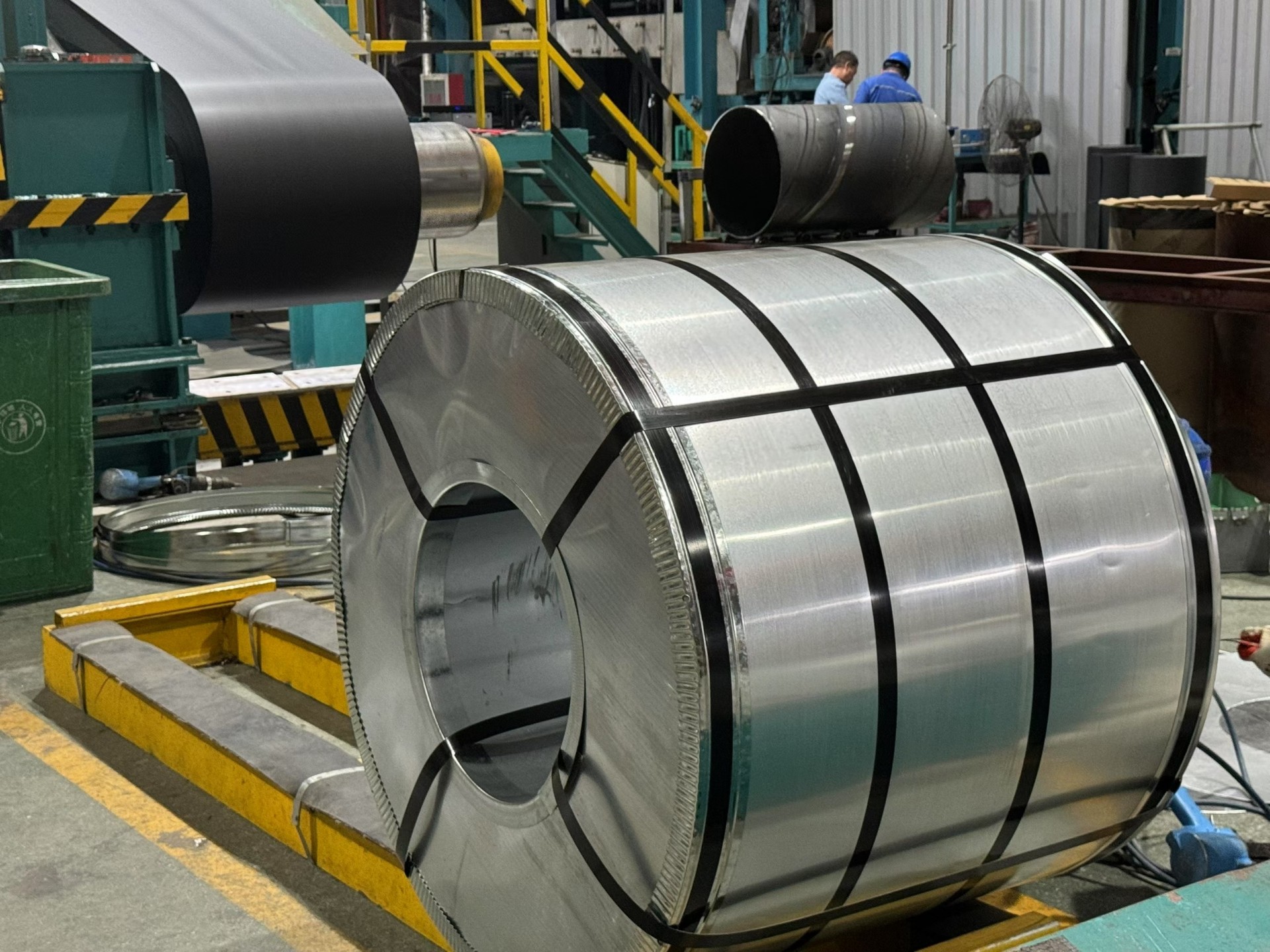

Product Name	Hot dip galvanized steel coil
Customized Standard	Customizable size
JIS/SYSCO	Quenched and Tempered		Not Tempered
Specification	Product Width(mm)	Base Plate Thickness(mm)	Product Width(mm)	Base Plate Thickness(mm)
SGCC	900~940 940~1040 1040~1100 1100~1220 1220~1230 1230~1250	0.20~1.60 0.23~1.60 0.24~1.60 0.25~1.60 0.26~1.60 0.35~1.60	900~940 940~1040 1040~1100 1100~1220 1220~1230 1230~1250 1250~1260 1260~1270	0.20~1.60 0.23~1.60 0.24~1.60 0.25~1.60 0.26~1.60 0.35~1.60 0.35~1.22 0.58~1.22
SGC 340	900~1050 1050~1220 1220~1250 1250~1260	0.20~1.60 0.28~1.60 0.40~1.60 0.80~1.60	900~1050 1050~1220 1220~1250 1250~1260	0.20~1.60 0.28~1.60 0.40~1.60 0.80~1.60
SGC 400	900~960 960~1110 1100~1220 1220~1240 1240~1260	0.28~1.60 0.35~1.60 0.38~1.60 0.40~1.60 0.60~1.60	900~1100 1100~1240 1240~1260 1260~1270	0.35~1.60 0.40~1.60 0.60~1.60 0.70~1.20
SGC 440 SGC 490	900~920 920~1230 1230~1250	0.28~1.60 0.35~1.60 0.40~1.60	900~920 920~1230 1230~1250	0.28~1.60 0.35~1.60 1.04~1.60
SGC 570 SGCH	900~920 920~940 940~1230	0.21~1.60 0.25~1.60 0.28~1.60	900~920 920~940 940~1230	0.21~1.60 0.25~1.60 0.28~1.60
SGCD1	900~1250	0.30~1.60	900~1250	0.30~1.60
Galvanized layer and applicable cold rolling thickness range	Z08,Z10:0.30~1.60mm Z12,Z18,Z22,Z25,Z27:0.20~1.60mm Z35,Z450:0.40~1.60mm
Product name	hot-dip galvanized steel coil, galvanized steel coil，aluminum-zinc steel coil
standard	customized size
